Tokico Illuminas

Purchased a set of Illuminas in a group buy from Toysport. Here are just some pics of them.

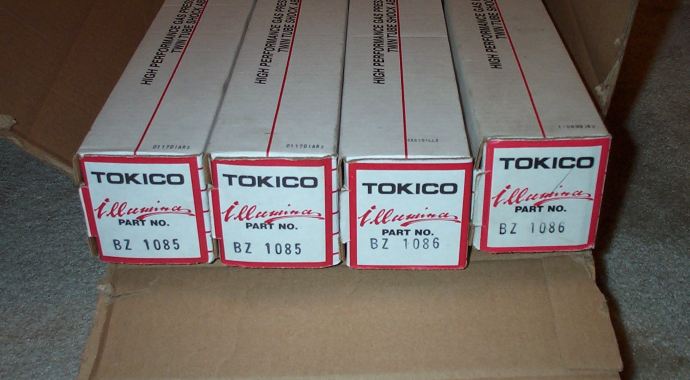

The 2 different part numbers, Front = BZ1085, Rear = BZ1086. Note: These part numbers are only valid for 85-86 MR2s.

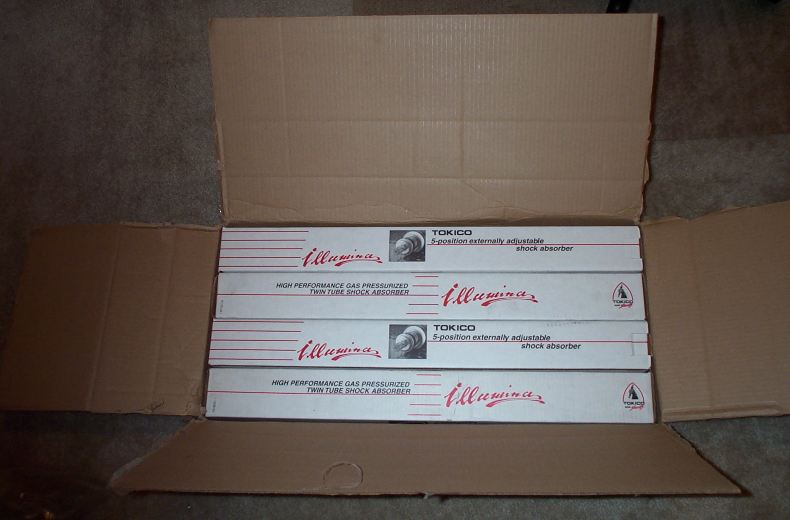

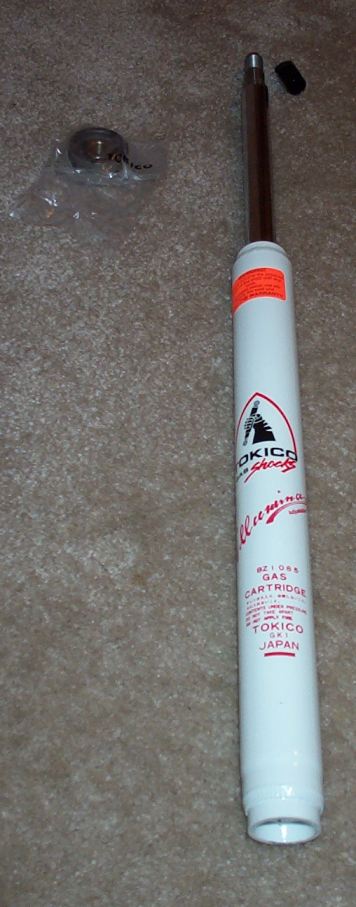

Here's what comes in each box along with some instructions & warranty card.

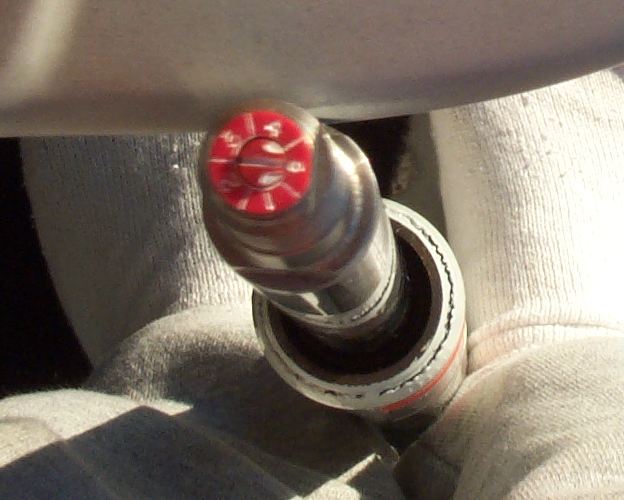

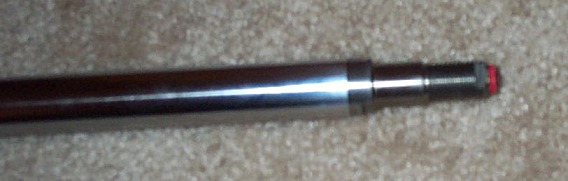

Here's the adjustment knob. 1=soft, 5=hard. Sorry for the blurry pic.

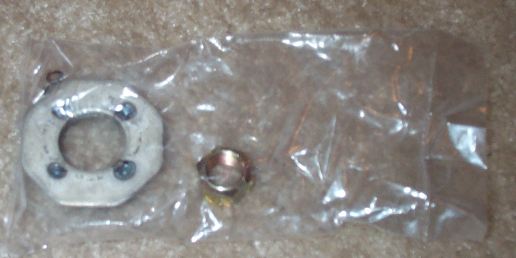

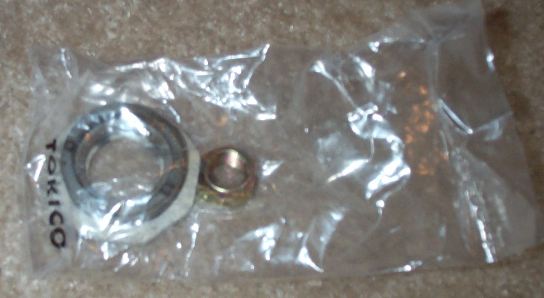

Here's the 2 nuts that come with each strut (gland nut and nut for the strut top).

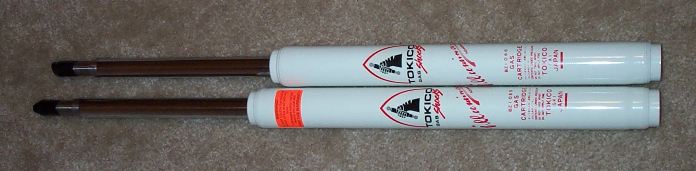

Comparing the Rear (top) & Front (bottom) shocks:

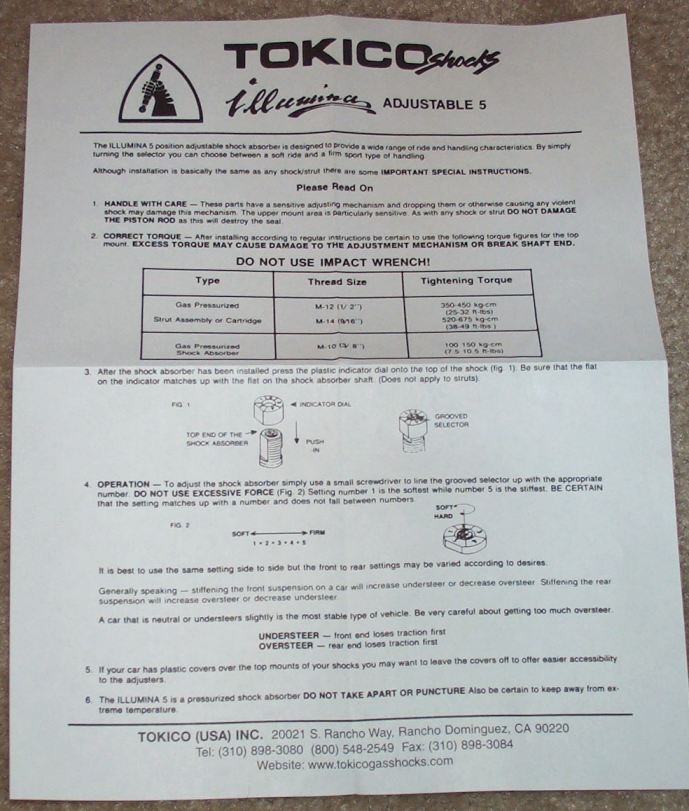

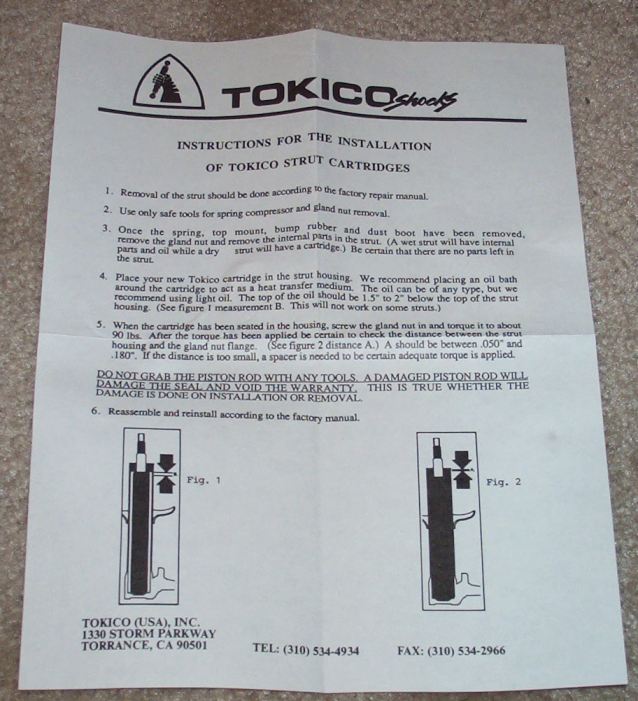

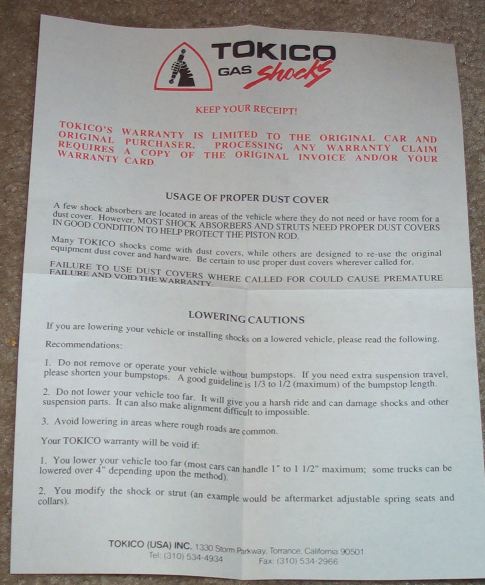

Here are the 3 papers that come in each box. Save these to your computer and zoom in on them to read it easier if you want.
